SmartFox

New concept in the world of PLC (Programmable Logic Controllers). The breakthrough PLC Core design brings minimal CPU requirements, enables effective industrial process control, intuitive web programming and cloud services for remote access, redundacy and data backup.

Features

Look at the features and benefits of the SmartFox system.

Small PLC core for real-time control

Minimum hardware requirements

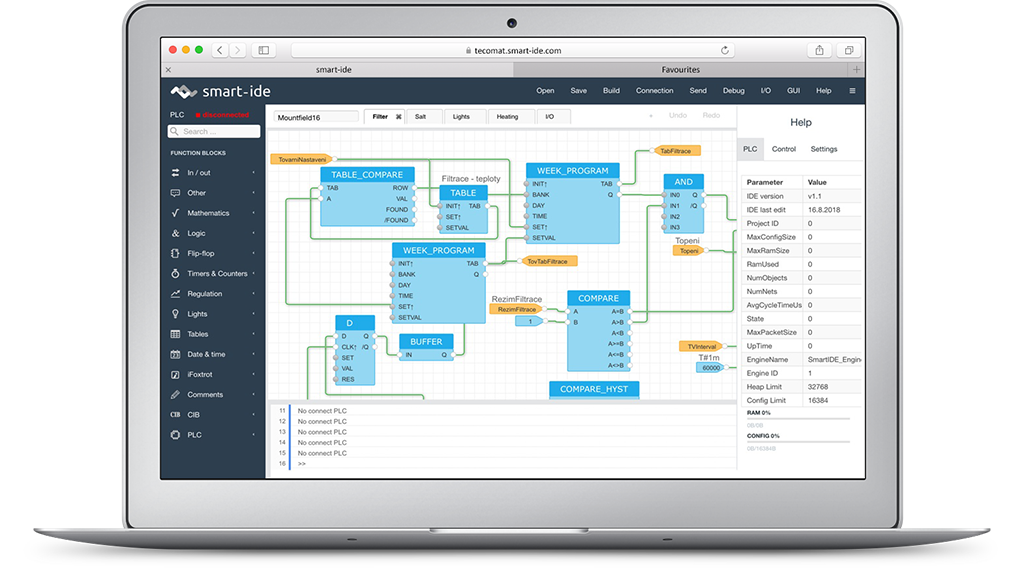

Easy and intuitive Web-based programming

Function block design

Rapid application development

Great connectivity (WiFi, Bluetooth, RFox, LTE)

Flexible combination of onboard inputs and outputs

Simple data sharing among multiple PLCs

Large-scale cloud infrastructure

Integrated WebSocket & JSON drivers

Surprisingly easy debugging

Affordable prices

SmartFox Models

Any model you select will meet your requirements.

PLC Stick

A USB stick with a PLC core

Main Features

Full-featured PLC on a small USB stick
Support for visual programming
R-Fox (Wireless Bus)
Common Installation Bus (CIB)
2 x digital input
1 x digital output

USBStick

CIB Bus

R-Fox Bus

Visual Prog.

Usage

PC-to-RFox gateway
Programming adapter for R-Fox modules
Diagnostic tool for communication with R-Fox modules
Simple home automation controller with RFox/CIB peripherals

Home Automat.

Home Automation

USBStick

CIB Bus

R-Fox Bus

Visual Programming

Digital I/O

Download Data Sheet

SmartFox CP-5000

A compact PLC with CIB support

Main Features

Powerful PLC in compact design
CIB (Common Installation Bus) support
CIB to Ethernet gateway
Outstanding integration of SmartFox and IT & telecommunications systems in one device
Optional R-Fox II master – a wireless I/O system in the 868 MHz band
R-Fox II to Ethernet gateway

Powerful CPU

CIB Bus

R-Fox II Master

Visual Prog.

Usage

Powerful control system – controlling any Process, excellent for Smart Homes, Building Automation or HVAC systems
Independent programmable datalogger with time stamping

Home Automat.

HVAC Systems

Building Autom.

Home Automation

HVAC Systems

Building Automation

Powerful CPU

CIB Bus

R-Fox II Master

Visual Programming

Download Data Sheet

SmartFox CP-5001

A compact PLC, great for Smart Homes and Building Automation

Main Features

Compact PLC with 10 analog/digital inputs and 10 digital outputs
CIB (Common Installation Bus) support
Powerful CPU suitable for HVAC systems
Outstanding integration of SmartFox and IT & telecommunications systems in one device
Optional RFox II master – a wireless I/O system in the 868 MHz band
Each of the 10 universal inputs can be configured as a 24V binary input, as a potential free contact, or as an analog input
ADI3 ÷ ADI4 inputs can be additionally configured by jumpers as current inputs 4(0) ÷ 20 mA
All inputs ADI1 ÷ ADI10 can be configured either for connecting resistance temperature detectors (RTD) or as voltage inputs
Other inputs can be configured for one of RTD range or voltage range
Additional inputs or outputs can also be extended by two 2-wire CIB buses (19.2 kbps/115 kbps)

Powerful CPU

Many I/O

CIB Bus

R-Fox II Master

Visual Prog.

Usage

Powerful control system – control any Process, excellent for Smart Homes, Building Automation or HVAC systems

Industrial Processes

HVAC Systems

Building Autom.

Home Automat.

Industrial Processes

HVAC Systems

Building Automation

Home Automation

Powerful CPU

Many I/O

CIB Bus

R-Fox II Master

Visual Programming

Download Data Sheet

SmartFox CP-5002

A compact PLC for process control, energy management and HVAC

Main Features

Compact PLC with a powerful CPU
4 analog/digital inputs, 1 power input, 3 digital outputs
Outstanding integration of SmartFox and IT & telecommunications systems in one device
Optional RFox II master – a wireless I/O system in the 868 MHz band
Unique combination of onboard inputs/outputs suitable for energy management and HVAC systems
Each of the 4 universal inputs can be configured as a 24V binary input, as a potential free contact, or as an analog input
ADI3 ÷ ADI4 inputs can be additionally configured as current inputs 4(0) ÷ 20 mA
All inputs ADI1 ÷ ADI10 can be configured either for connecting resistance temperature detectors (RTD) or as voltage inputs
Other inputs can be configured for one of RTD range or voltage range
Graphical display with a resolution of 128 x 32 pixels

Powerful CPU

CIB Bus

R-Fox II Master

Visual Prog.

Usage

Powerful control system – control any Process, excellent for HVAC systems, Energy Management or Building Automation
Independent programmable datalogger with time stamping

Industrial Processes

HVAC Systems

Building Autom.

Home Automat.

Industrial Processes

HVAC Systems

Building Automation

Home Automation

Powerful CPU

CIB Bus

R-Fox II Master

Visual Programming

Download Data Sheet

SmartFox CP-5003

A compact CIB-powered PLC with a powerful CPU suitable for smart home systems

Main Features

Compact PLC with 4 analog/digital inputs and 3 digital outputs
CIB (Common Installation Bus) support
Powerful CPU suitable for smart home systems
Outstanding integration of SmartFox and IT & telecommunications systems in one device
Optional RFox II master – wireless I/O system in the 868 MHz band
Unique combination of onboard inputs/outputs suitable for HVAC systems
Each of the 4 universal inputs can be configured as a 24V binary input, as a potential free contact, or as an analog input
ADI3 ÷ ADI4 inputs can be additionally configured as current inputs 4(0) ÷ 20 mA
All inputs ADI1 ÷ ADI10 can be configured either for connecting resistance temperature detectors (RTD) or as voltage inputs
Other inputs can be configured for one of RTD range or voltage range
Graphical display with a resolution of 128x32 pixels
